The advantages of mobile source environmental access control

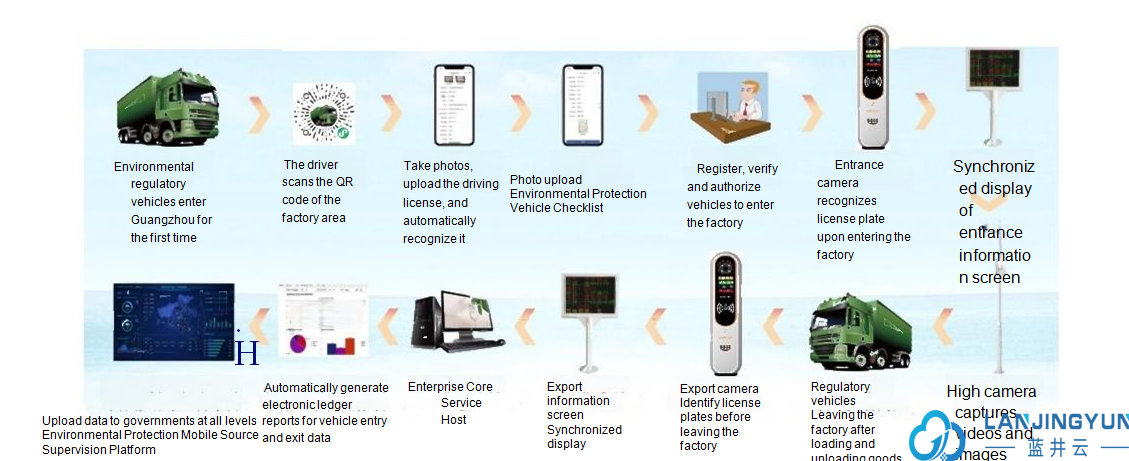

1. Automatic recognition of vehicle emission stage by scanning the code

2. Record photos and short videos of key points for vehicle braking to form a chain of law enforcement evidence

3. Unmanned weighing and access control unified platform, weighing data uploaded to mobile source electronic ledger

4. Mobile source environmental access control and enterprise daily access control, two in one function

Vehicle information reporting

Improve the information filing of enterprise transportation vehicles, on-site transportation vehicles, and non road mobile machinery vehicles. The reporting information includes vehicle owner or enterprise information, license plate number, chassis number, engine number information, fuel type, emission standards, and uploaded environmental protection information along with the vehicle list or driving license.

Electronic ledger for entry and exit

Record and regularly report the entry and exit of vehicles in an electronic ledger using the principle of 'one vehicle, one pole'. Keep the ledger for at least one year for verification purposes.

Emergency emission reduction restrictions

Enterprises are required to coordinate with emergency management and control in heavy pollution weather, respond quickly, implement emergency emission reduction measures, and restrict the entry of vehicles with emission standards of National IV or below.

Software copyright

Product advantages

Environmental Protection Access Control Electronic Ledger Management System

In order to effectively control heavy pollution weather, reduce the impact of heavy pollution weather on people's health and environmental air quality, further highlight precise pollution control, scientific pollution control, and legal pollution control, and ensure public health, in accordance with the "Technical Guidelines for Developing Emergency Emission Reduction Measures for Key Industries in Heavy Pollution Weather (Revised in 2020)" issued by the Ministry of Ecology and Environment, enterprises are divided into four levels: A, B, C, and D through differentiated indicators such as equipment level, energy type, pollution control technology, emission limits, unorganized emissions, monitoring and control level, environmental management level, transportation mode, and transportation supervision. The scope of performance grading industries is expanded, relevant indicators and emission reduction measures are improved, and key industry performance grading is carried out.

In response to the government's call and in accordance with the "Technical Guidelines for Emergency Management of Mobile Sources in Key Industries with Heavy Pollution Weather", we have launched an environmental access control electronic ledger system solution using license plate recognition as a technical means.

The environmental access control electronic ledger management system is designed to meet the practical needs of precise management and quantitative analysis of vehicle ledgers for polluting enterprises, which are key projects under the control of the Ministry of Ecology and Environment. It aims to achieve a "one enterprise, one book" collection of key vehicle ledger information.

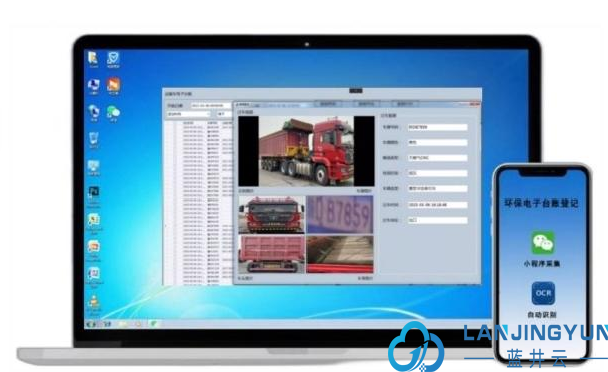

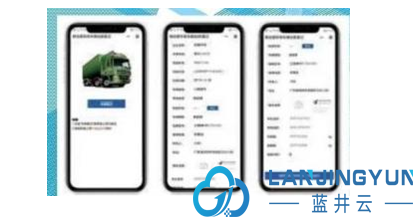

Display of mobile mini program page

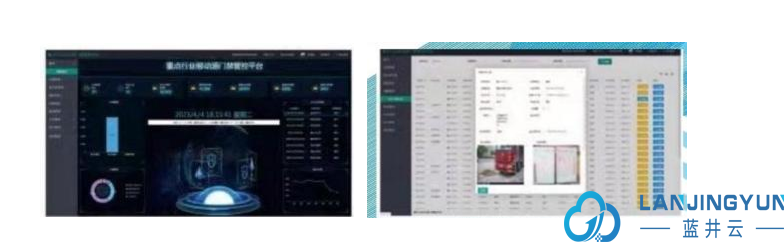

Key Industry Mobile Source Access Control Platform Page Display

license plate recognition

Zhenshi camera pixel resolution 2180 * 1280: 99.9% during the day, ≥ 99.9% at night

License plate detection rate: ≥ 99.9% during the day and ≥ 99.9% at night

Effective pixels: 3-4 million pixels

Communication method: 10/100M Ethernet TCP/IP

Adaptive speed: 5-80 kilometers per hour

Working temperature: -25 ℃~70

Image sensor: 1/3 "CMOS

Image resolution: 720P CIF 4 CIF

Electronic Shutter: 1/1 to 1/10000 seconds, 22 levels

Best shooting range: 3-6 meters

License plate recognition camera protection level: IP66

Storage: Supports 32GTF card (microSD card)

Equipped with gate opening function, supporting camera transmission

Built in four LED fill lights with adjustable brightness, each with a maximum power consumption of 1W

Equipped with an integrated painted chassis and AC220V 15W built-in fill light.

Display screen input power supply: 220AC

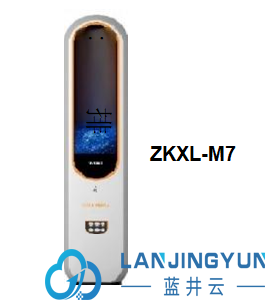

Zhenshi Camera (Zoom Lens Camera. Resolution: 2304 * 1296)

Added secondary development to improve recognition rate and enhance recognition accuracy. Recognition angle ≤ 98 °. Effective pixels: 5~6 million pixels

Network: 1 RJ45100M adaptive network interface

Communication: 2 RS485 interfaces, 1 set of SYS, 2 sets of inputs, 2 sets of outputs. Power supply: 1 AC 220V voltage interface

Adapt to a speed range of 0-80Km/h

Working temperature: -25 ℃ -70 ℃, humidity ≤ 90%

Sensor type: 1/2.8/CMOS

Image settings: Shutter, gain, brightness, etc. can be adjusted

Maximum frame rate: main stream 25FPS, sub stream 25FPS

License plate recognition camera protection level: IP66 (double-layer protective cover)

Whitelist function: supports whitelist import and export functions

Equipped with AC220V 15W15 bead built-in fill light

Display screen input power supply: 200AC

Vertical display, license plate number, parking time, fee amount, and advertising information (content can be freely set)

Support TTS universal voice broadcasting

Offline charging, no need for control board

Support WeChat and Alipay Cloud platforms

Support wireless cloud parking platform

Overall dimensions of the shell: 280mm x 250mm x 1530mm (width x thickness x height)

Font library capacity: National standard second level font library, with a maximum of 16384 Chinese characters

Voice output: Real person pronunciation, TTS arbitrary voice broadcast

Data communication: Ethernet communication interface 10M/100M adaptive, lightning protection design

Text display: Four Chinese characters, displayed in four rows (maximum movement display of 20 Chinese characters)

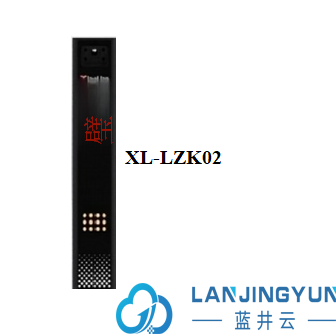

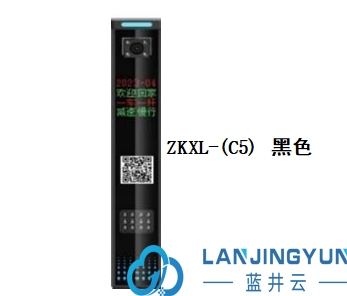

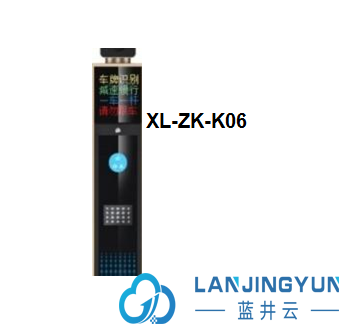

Barrier gate license plate recognition integrated machine (P30 full-color screen)

Zhenshi Camera (Zoom Lens Camera. Resolution: 2304 * 1296)

Added secondary development to improve recognition rate and enhance recognition accuracy. Recognition angle ≤ 98 °. Effective pixels: 5~6 million pixels

Network: 1 RJ45100M adaptive network interface

Communication: 2 RS485 interfaces, 1 set of SYS, 2 sets of inputs, 2 sets of outputs. Power supply: 1 AC 220V voltage interface

Adapt to a speed range of 0-80Km/h

Working temperature: -25 ℃ -70 ℃, humidity ≤ 90%

Sensor type: 1/2.8/CMOS

Image settings: Shutter, gain, brightness, etc. can be adjusted

Maximum frame rate: main stream 25 FPS, sub stream 25 FPS

License plate recognition camera protection level: IP66 (double-layer protective cover)

Whitelist function: supports whitelist import and export functions

Equipped with AC220V 15W15 bead built-in fill light

Display screen input power supply: 200AC

Vertical display, license plate number, parking time, fee amount, and advertising information (content can be freely set)

Support TTS universal voice broadcasting

Offline charging, no need for control board

Support WeChat and Alipay Cloud platforms

Support wireless cloud parking platform

Overall dimensions of the shell: 280mm x 250mm x 1530mm (width x thickness x height)

Font library capacity: National standard second level font library, with a maximum of 16384 Chinese characters

Voice output: Real person pronunciation, TTS arbitrary voice broadcast

Data communication: Ethernet communication interface 10M/100M adaptive, lightning protection design

Text display: Four Chinese characters, displayed in four rows (maximum movement display of 20 Chinese characters)

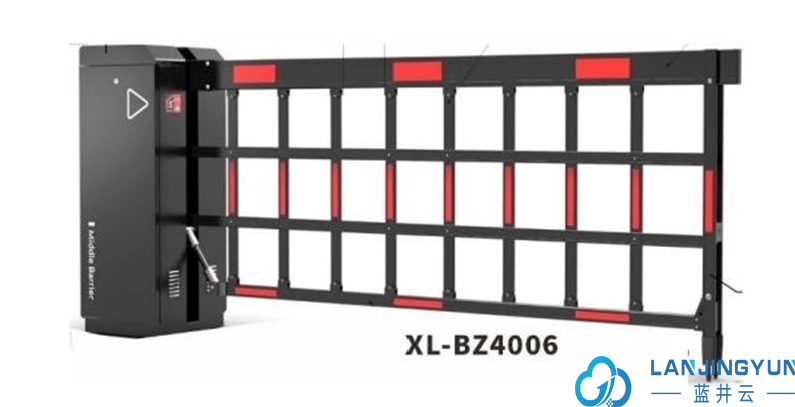

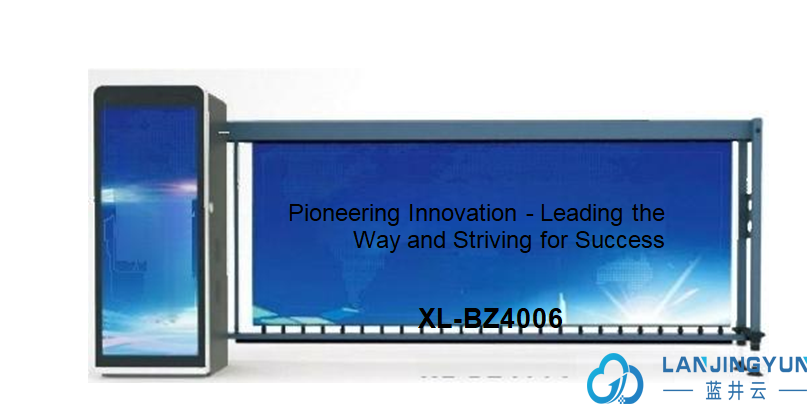

Brushless barrier gate

DC brushless motor, motor power 120W-140W,

Voltage 24V, adjustable takeoff and landing speed for 1-6 seconds, 4-meter pole,

Using a DC motor to drive the blades ensures stable and reliable operation;

High power motor core, fully ensuring sufficient output torque and fracture resistance;

Double support columns and suction cup design ensure greater stability and stability even in the presence of wind when lowering the rod

Electrical parameters: DC brushless motor+Bluetooth control board

Motor power: 250W

Motor torque: 175N M

Reduction ratio: 1/240

Power supply: 350w

Working temperature: -25 ℃ -70 ℃

Remote control frequency: 430MHz

Running speed: 5-8 seconds

Working temperature: -25 ℃ -70 ℃

Specification parameters:

Chassis size: 580 * 490 * 1450 mm Packaging size: 630 * 560 * 1500mm

Pole top height: 1380mm

Sheet metal specification: 1.5mm

Rod clamp opening: 116-295mm

Door leaf size: 490 * 1275mm

Whole machine weight: 110KG

Process: High temperature baking paint for galvanized sheet (black silver color)

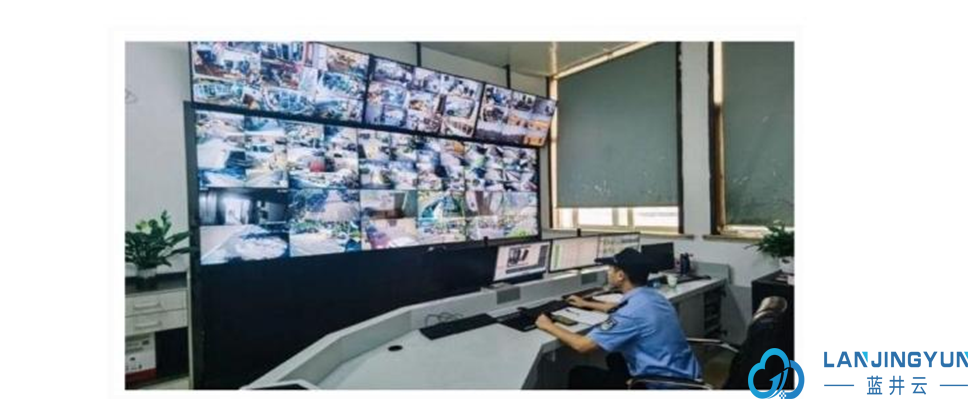

safety management

On the basis of Al access control, establish a pedestrian cluster library to achieve facial recognition, door opening perception, vehicle passing perception, fire protection perception, video perception, and real-time control of various information in the community. Real time video intelligent analysis is carried out to manage abnormal situations such as occupying the road and climbing and trailing vehicles, and to search for people, vehicles, and objects with the same characteristics in the community big data massive video image structured data center. Accurately crack down on criminals, improve community safety, provide effective information for public security departments, and enhance residents' sense of security and happiness in their homes.

Product Safety

1. The system database adopts a dual hot backup architecture, which can automatically switch to the slave database in seconds in case of downtime or hardware failure, making it more secure than a local database.

2. The company solemnly promises to respect and protect the personal privacy of users, and will not disclose any information related to users without their authorization.

3. In order to ensure the security of user information and data, the system adopts bank grade SSL encryption throughout the process, which can encrypt and prevent eavesdropping and copying of information transmitted from user accounts.

Service Standards

1. The after-sales service team will conduct regular inspections on the usage of the customer's system, provide operational guidance, and provide problem-solving services (online follow-up and maintenance in remote areas).

2. 1on-1 VIP service. The company will establish a dedicated service group for each customer, providing comprehensive support from deployment and implementation to operation and maintenance.

3. Professional technical maintenance team. Each customer proposes a necessary feature for the system, and the company will evaluate the requirements. Once adopted, development and upgrades will be carried out.

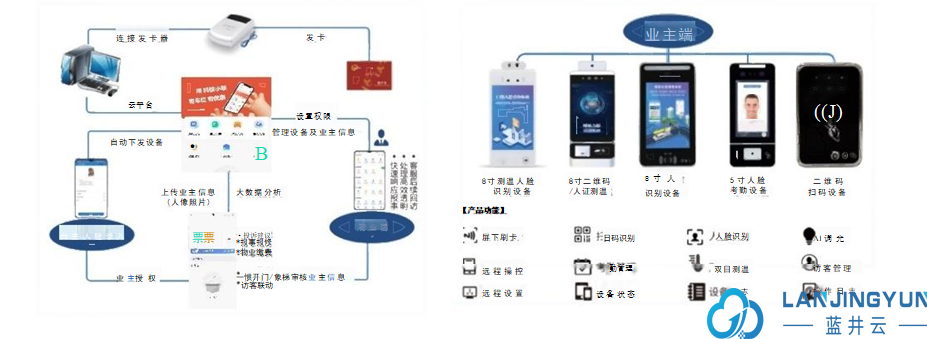

Cloud Gate Prohibition

By using facial recognition to open doors, QR code to open doors, card swiping to open doors, remote opening doors, visitor opening doors, and other multiple opening methods, we can meet the access control needs of various scenarios, improve user experience, security, and traffic efficiency

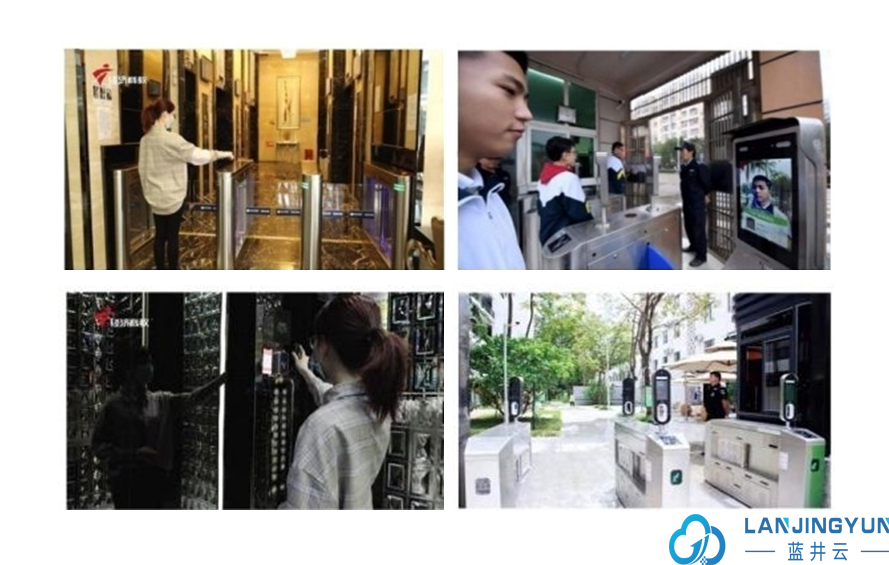

Application scenarios

Government agencies, private buildings, office buildings, communities, parks, schools, old residential areas, urban villages, elevators, parking lots, etc

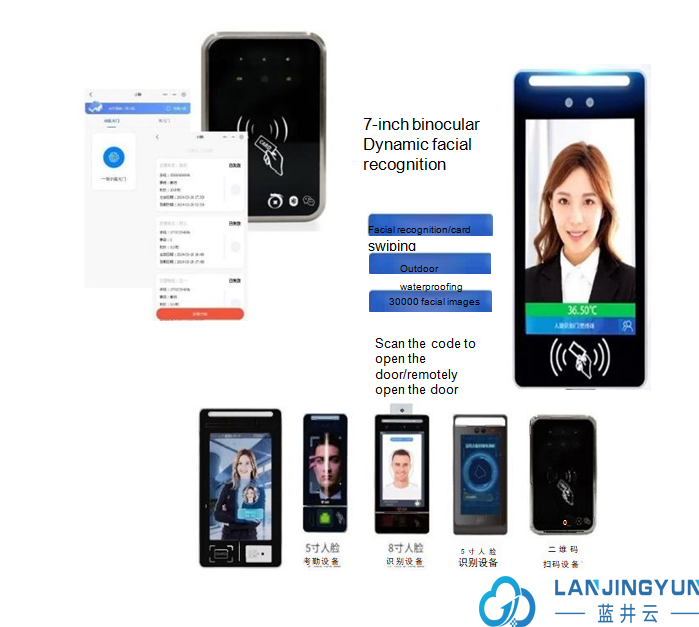

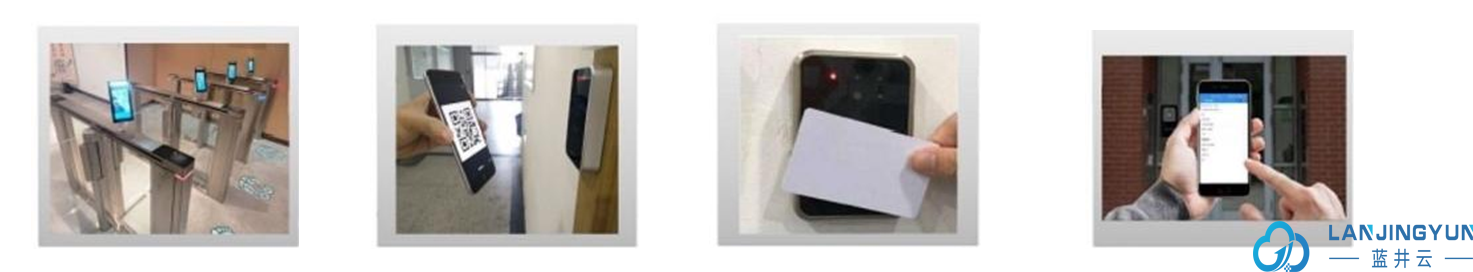

Hardware equipment

▶ Scan the code to open the door

Dynamic QR code for fast scanning and door opening, with time and frequency limits

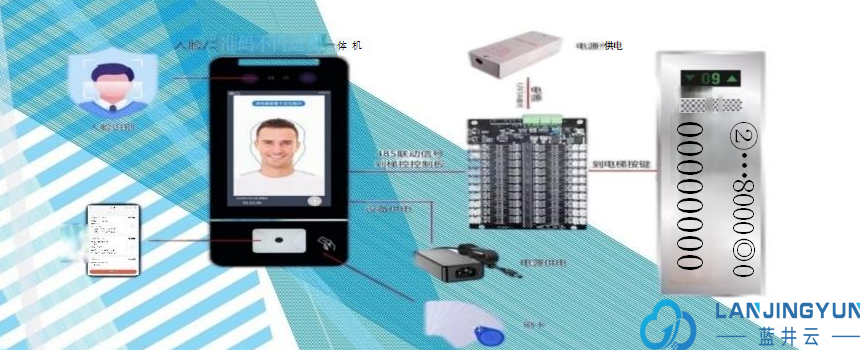

Limit floors to prevent duplication and ensure security.

▶ IC card swiping to open the door

Elderly and children or users without smartphones

Traditional IC card swiping can be used for entry and exit.

▶ Remote door opening

Optional network/4G module, remote door opening through mobile phone, reporting door opening records.

▶ Support offline installation and use

Can be installed offline without the need for Ethernet cables or WiFi, suitable for various installation environments.

▶ Bluetooth shake to open the door

you can shake the WeChat mini program to open the door via Bluetooth at close range.
